ASTM A333
Low-Temperature Seamless Pipe
ASTM A333 / ASME SA-333 seamless steel pipe for low-temperature service, with Charpy impact testing. Grade 6 is the most specified.

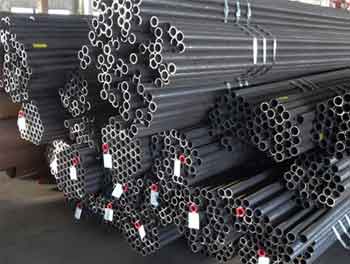

ASTM A333 seamless pipe
OVERVIEW
Pipe that stays tough in the cold.
ASTM A333 covers seamless and welded carbon and alloy steel pipe for low-temperature service and other applications that need notch toughness. Each grade is Charpy impact tested at a set temperature.
Grade 6, a carbon-manganese grade impact tested at −50°F (−45°C), is the most widely specified. We supply A333 seamless pipe, dual certified to ASME SA-333 where the order requires, with an MTR that reports impact results, heat number and country of melt.
✓ Seamless pipe for low-temperature service
✓ Grade 6 impact tested at −50°F (−45°C)
✓ Dual certification to ASME SA-333
✓ Heat treated as the standard requires
✓ MTR with impact results and country of melt
✓ Grade 6 impact tested at −50°F (−45°C)
✓ Dual certification to ASME SA-333
✓ Heat treated as the standard requires
✓ MTR with impact results and country of melt
ASTM A333 seamless pipe
SPECIFICATION SUMMARY
What the standard requires.
Key requirements
| Requirement | ASTM A333 / ASME SA-333 |
|---|---|
| Scope | Seamless and welded steel pipe for low-temperature service |
| Grades in the standard | 1, 3, 4, 6, 7, 8, 9, 10, 11 |
| Grade 6 tensile / yield, min | 60,000 psi (415 MPa) / 35,000 psi (240 MPa) |
| Grade 6 carbon, max | 0.30% |
| Grade 6 manganese | 0.29 to 1.06% |
| Grade 6 impact test temperature | −50°F (−45°C) |
| Impact energy, min (full size) | 13 ft·lbf (18 J) average of three specimens |
| Tests | Tension, flattening and Charpy impact; hydrostatic or nondestructive electric test |
| Note | Values summarize the standard. Your purchase order governs the edition and any supplementary requirements. |
APPLICATIONS & INDUSTRIES
Where these tubes get used.
GRADES
Grade 6 first.
MOST SPECIFIED
Grade 6
Carbon-manganese pipe impact tested at −50°F (−45°C).
IN THE STANDARD
Grades 1, 3, 4, 7 to 11
Other test temperatures and alloy grades; ask about availability.
