Seamless
API 5DP Drill Pipe & Components

API 5DP seamless drill pipe in E75, X95, G105, and S135 grades — with upset tool joints for rotary drilling in onshore and offshore operations.

API 5DP drill pipe

OVERVIEW

The rotating backbone of every well.

Global Seamless manufactures API 5DP seamless drill pipe with friction-welded tool joints for rotary drilling operations. Every joint is produced to API specification with full mechanical testing, inspection, and dimensional certification.

Our drill pipe program covers conventional and directional drilling — from standard E75 for shallow wells to premium S135 for deep, extended-reach, and HPHT drilling where fatigue life and torsional strength are critical.

✓ API 5DP specification
✓ Grades: E75, X95, G105, S135
✓ IEU and EU upsets available
✓ Friction-welded tool joints
✓ Full EMI, UT, and dimensional inspection

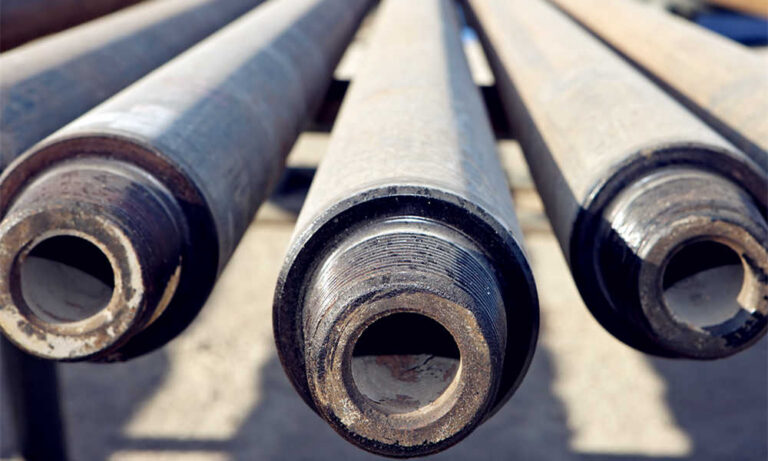

API 5DP drill pipe with tool joints

DIMENSIONAL SPECIFICATIONS

Available size range.

Cold Drawn Seamless (CDS)

Outside Diameter (OD)	Nominal Weight	Range	Upset
2-3/8" – 3-1/2"	6.65 – 15.50 lb/ft	R2	EU / IEU
4" – 5"	14.00 – 25.60 lb/ft	R2 / R3	IEU
5-1/2" – 6-5/8"	21.90 – 27.70 lb/ft	R2 / R3	IEU

APPLICATIONS & INDUSTRIES

Where these tubes get used.

Onshore Drilling

Land rig drill strings for conventional, shale, and tight-formation wells.

Offshore Drilling

Platform, jack-up, and deepwater drill strings with premium connections.

Directional / HDD

Drill pipe for directional, horizontal, and HDD crossings.

Workover & Completion

Workover strings and completion drill pipe for well intervention.

MATERIAL GRADES

E75 · X95 · G105 · and S135.

STANDARD

E75 · X95

Standard drill pipe for conventional shallow-to-medium depth rotary drilling.

HIGH STRENGTH

G105 · S135

Premium high-strength grades for deep, directional, and extended-reach drilling.

HEAVY WEIGHT

HWDP

Heavy-weight drill pipe for BHA transition and weight-on-bit applications.

TECHNICAL ARTICLES

Latest insights on drill pipe.

ARTICLE

API 5DP Drill Pipe Grades

E75 to S135 — matching grade to drilling conditions.

ARTICLE

EU vs IEU Upset

Understanding external and internal-external upset designs.

ARTICLE

Drill Pipe Fatigue

Managing drill pipe fatigue life in demanding drilling programs.

GET A QUOTE

Send your drill pipe spec.
Get a proposal in 24 hours.

OD, weight, grade, upset, connection, quantity — we revert with a technical & commercial proposal.
